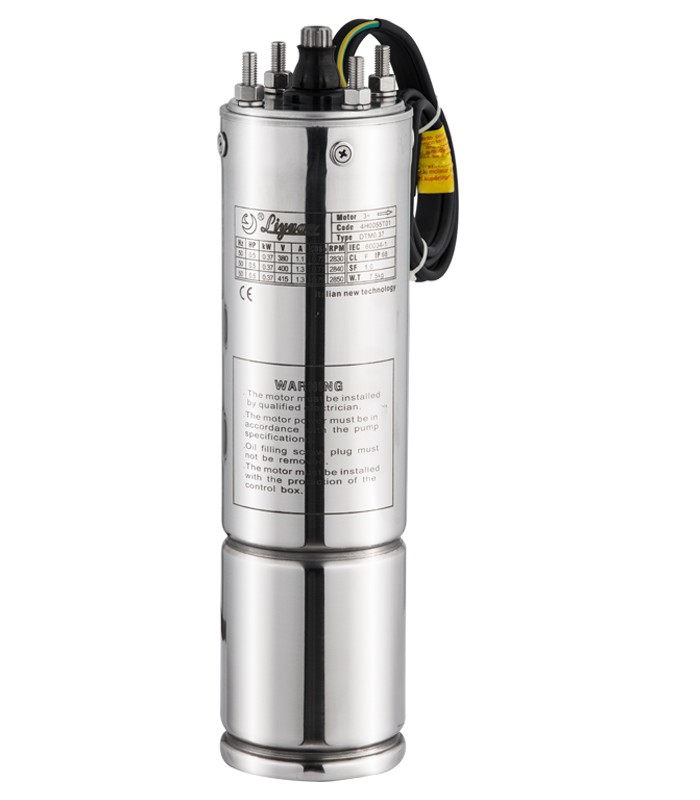

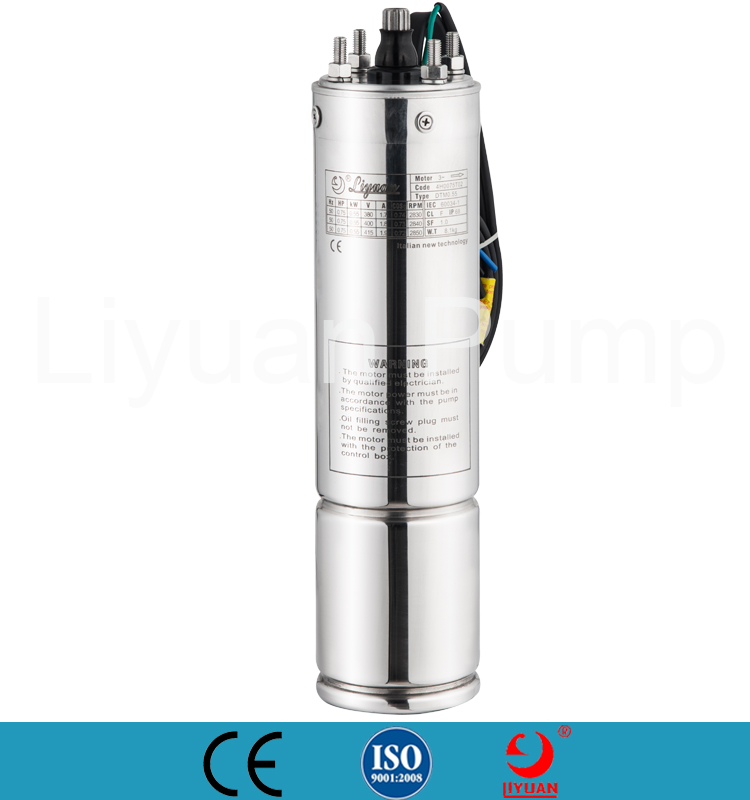

4'' S.S. Deep Well Water Pump Motor, Electric Pump Motor For Arid Area

  • Guangdong, China (Mainland)

  • Liyuan; ATA

  • 0.55-10HP

  • 4'' S.S. Deep Well Water Pump Motor, Electric Pump Motor For Arid Area

  • For Submersible Pump

  • Stainless Steel

  • IP68

  • 0.25-2.2kW/0.37-7.5kW

  • 220V/380V

  • 1500N/2300N/4000N

  • B

  • 40℃

  • 6.5-8

Product Description

Product Description

Widely Used 3kW Submersible Motor, 4s Deep Well Pump Motor

4'' Single Phase Oil Cooling Motor (220V+-5% 50Hz 60Hz)

Motor Power Current Power Factor Rotation Speed Length Weight
HP kW A COS rpm mm kg
0.33 0.25 2.8 0.98 2850 378 5.6
0.55 0.37 3.2 0.98 2850 353 6.8
0.75 0.55 4.5 0.98 2850 373 7.8
1.1 0.75 6 0.98 2850 398 9
1.5 1.1 9 0.98 2850 428 10.5
2 1.5 10.3 0.98 2850 463 11.8
3 2.2 14.6 0.98 2850 530 14.7

4'' Three Phase Oil Cooling Motor (380V+-5% 50Hz 60Hz)

Motor Power Current Power Factor Rotation Speed Length Weight
HP kW A COS rpm mm kg
0.55 0.37 1.2 0.68 2850 370 7.5
1.1 0.75 1.8 0.72 2850 410 8.9
1.5 1.1 3.1 0.74 2850 420 9.7
2 1.5 4 0.76 2850 445 11
3 2.2 5.6 0.77 2850 555 13.8
4 3 7.6 0.77 2850 639 18.2
5.5 4 9.6 0.80 2850 694 21.5
7.5 5.5 14 0.82 2850 794

26.5

10 7.5 16.5 0.83 2850 929

32.4
