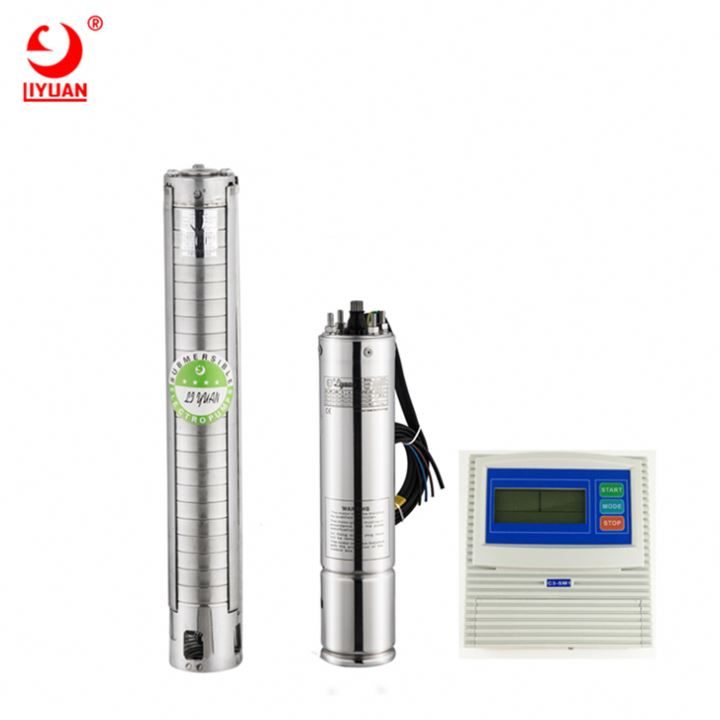

Factory Wholesale Low Noise 3 Inch Water Pump Hose

  • Guangdong, China (Mainland)

  • Liyuan

  • FLYP-7485

  • Multistage Pump

  • Water

  • Submersible

  • Electric

  • Other

  • High Pressure

  • 3 inch water pump hose

  • stainless steel

  • Watering

  • one year

  • High Flow

  • 220V/380V

  • ISO9001 CE

  • Silver

  • Agriculture Irrigation Tools

  • 100% Copper Wire

  • Standard

  • Centrifugal Pump

Product Description

NO LIYUAN TYPE MOTOR POWER CAPACITY(m3/h)/TOTAL HEAD MAX Q
(m3/h)
MAX H
(m)
DIAMETER
(mm)
OUTLET
mm(inch)
PUMP BODY LENGTH
(mm)
PUMP BODY WEIGHT(kg)
HP kW
1 J50/6 0.5 0.37 1m3/36m 2m3/31m 3m3/25m 4.5 38 96 40
(1.5")
352 2.5
2 J50/10 0.75 0.55 1m3/60m 2m3/52m 3m3/42m 4.5 63 96 461 3.3
3 J50/13 1 0.75 1m3/78m 2m3/70m 3m3/55m 4.5 82 96 542 3.8
4 J50/19 1.5 1.1 1m3/114m 2m3/98m 3m3/80m 4.5 120 96 705 4.9
5 J50/27 2 1.5 1m3/162m 2m3/140m 3m3/114m 4.5 170 96 926 6.4
6 J50/38 3 2.2 1m3/228m 2m3/197m 3m3/160m 4.5 239 96 1300 8.7
7 J50/52 4 3 1m3/312m 2m3/270m 3m3/220m 4.5 327 96 1700 11.4
8 J80/5 0.5 0.37 2m3/30m 3m3/26m 4m3/21m 6 32 96 40
(1.5")
301 2.2
9 J80/8 0.75 0.55 2m3/47m 3m3/41m 4m3/33m 6 51 96 411 2.9
10 J80/10 1 0.75 2m3/59m 3m3/52m 4m3/41m 6 64 96 465 3.2
11 J80/14 1.5 1.1 2m3/83m 3m3/72m 4m3/58m 6 89 96 572 3.9
12 J80/18 2 1.5 2m3/107m 3m3/93m 4m3/75m 6 114 96 707 4.8
13 J80/26 3 2.2 2m3/154m 3m3/134m 4m3/108m 6 165 96 963 6.4
14 J80/32 4 3 2m3/190m 3m3/165m 4m3/133m 6 203 96 1152 7.6
15 J80/44 5.5 4 2m3/261m 3m3/227m 4m3/182m 6 280 96 1503 9.9
16 J80/60 7.5 5.5 2m3/356m 3m3/309m 4m3/249m 6 381 96 1990 15.5
17 J100/6 0.75 0.55 3m3/35m 4m3/30m 5m3/22m 7 40 96 40
(1.5")
376 2.7
18 J100/8 1 0.75 3m3/47m 4m3/40m 5m3/29m 7 53 96 439 3.1
19 J100/12 1.5 1.1 3m3/70m 4m3/60m 5m3/44m 7 80 96 564 3.9
20 J100/16 2 1.5 3m3/93m 4m3/80m 5m3/59m 7 107 96 689 4.7
21 J100/24 3 2.2 3m3/140m 4m3/120m 5m3/88m 7 160 96 976 6.7
22 J100/30 4 3 3m3/175m 4m3/150m 5m3/110m 7 200 96 1130 8
23 J100/40 5.5 4 3m3/233m 4m3/200m 5m3/147m 7 267 96 1445 10.2
24 J100/55 7.5 5.5 3m3/321m 4m3/275m 5m3/202m 7 367 96 1915 13.4
25 J100/75 10 7.5 3m3/375m 4m3/345m 5m3/255m 7 500 96 2536 17.7
26 J150/7 1 0.75 4m3/36m 6m3/26m 7m3/22m 9 46 96 40
(1.5")
387 2.7
27 J150/9 1.5 1.1 4m3/46m 6m3/34m 7m3/28m 9 59 96 478 3.3
28 J150/13 2 1.5 4m3/67m 6m3/50m 7m3/41m 9 85 96 603 4.1
29 J150/18 3 2.2 4m3/100m 6m3/70m 7m3/57m 9 118 96 801 5.3
30 J150/26 4 3 4m3/145m 6m3/110m 7m3/82m 9 171 96 1080 7.0
31 J150/34 5.5 4 4m3/180m 6m3/130m 7m3/107m 9 223 96 1463 10.2
32 J150/42 7.5 5.5 4m3/225m 6m3/166m 7m3/132m 9 276 96 1753 12.2
33 J150/56 10 7.5 4m3/300m 6m3/220m 7m3/176m 9 368 96 2277 15.8
34 J200/8 2 1.5 6m3/41m 8m3/36m 10m3/30m 17 53 96 50
(2")
533 3.6
35 J200/13 3 2.2 6m3/66m 8m3/59m 10m3/48m 17 86 96 733 4.7
36 J200/17 4 3 6m3/86m 8m3/77m 10m3/63m 17 112 96 911 5.7
37 J200/20 4 3 6m3/102m 8m3/91m 10m3/74m 17 132 96 1023 6.4
38 J200/24 5.5 4 6m3/122m 8m3/109m 10m3/89m 17 159 96 1443 9.5
39 J200/30 7.5 5.5 6m3/152m 8m3/136m 10m3/111m 17 198 96 1752 11.5
40 J200/35 10 7.5 6m3/178m 8m3/159m 10m3/129m 17 232 96 2007 13.2
41 J300/7 2 1.5 8m3/36m 10m3/33m 14m3/23m 19 46 96 50
(2")
579 4
42 J300/10 3 2.2 8m3/58m 10m3/48m 14m3/33m 19 65 96 732 5.1
43 J300/13 4 3 8m3/72m 10m3/60m 14m3/43m 19 85 96 885 6.1
44 J300/17 5.5 4 8m3/95m 10m3/80m 14m3/56m 19 111 96 1088 7.4
45 J300/22 7.5 5.5 8m3/125m 10m3/108m 14m3/73m 19 144 96 1343 9.1
46 J300/27 10 7.5 8m3/151m 10m3/130m 14m3/90m 19 177 96 1597 10.8
47 J400/10 4 3 12m3/39m 16m3/29m 20m3/26m 30 45 96 50
(2")
926 5.9
48 J400/14 5.5 4 12m3/55m 16m3/48m 20m3/36m 30 64 96 1201 7.6
49 J400/18 7.5 5.5 12m3/70m 16m3/61m 20m3/47m 30 82 96 1475 9.3
50 J400/24 10 7.5 12m3/94m 16m3/81m 20m3/60m 30 109 96 1887 11.8

Factory Wholesale Low Noise 3 Inch Water Pump Hose4"&6"Factory Wholesale Low Noise 3 Inch Water Pump Hose
