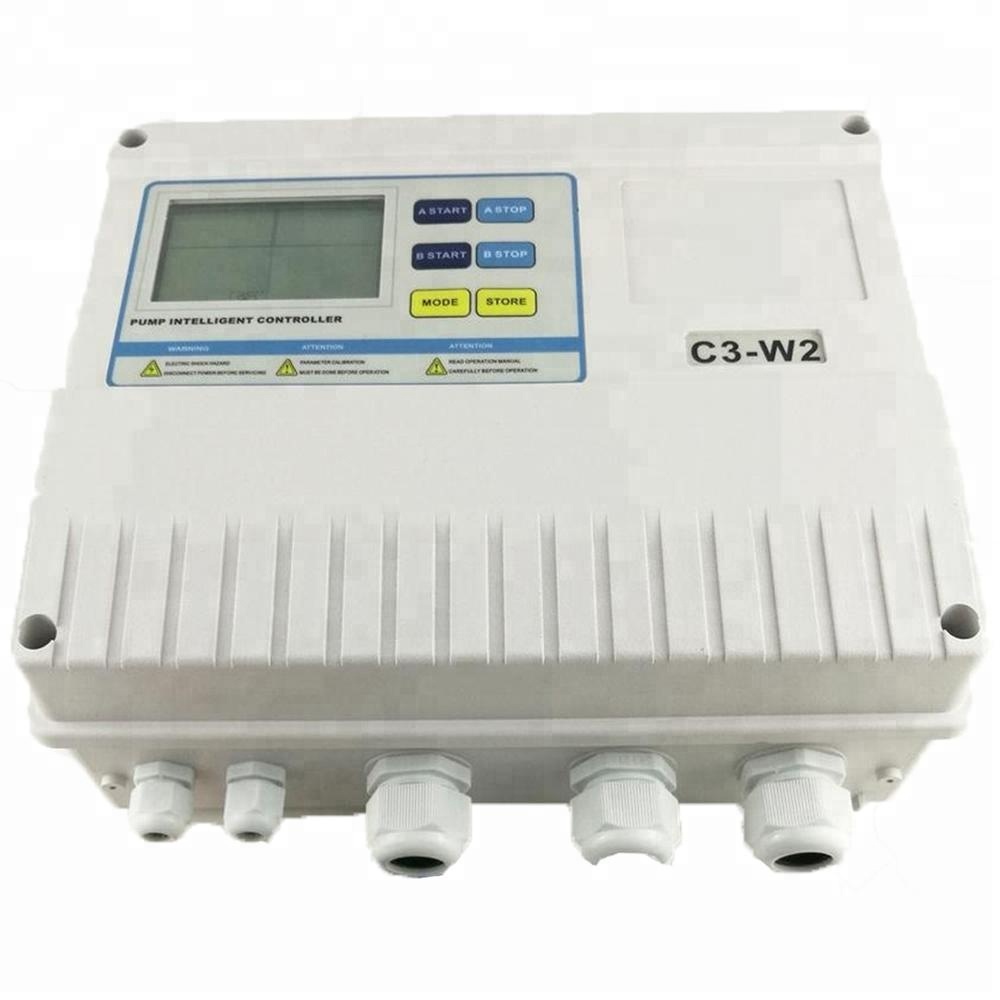

Device Controller, Pump Pressure Controller - Water Supply Equipment


Inquire

Place of Origin: Guangdong, China (Mainland)
Brand Name: Liyuan
Model Number: c3-w2
Protection Level: IP54
Type: Control Box
External Size: Standard
Name: Device Controller, Pump Pressure Controller - Water Supply Equipment
Usage: For Submersible Pump
Hull Material: Stainless Steel
IP Protection Grade: IP54
Overload Protection: Y
Display: LCD
Capacitor: 20-60uf
Frequency: 50/60Hz
Running: Auto / Manual
Calibration: by Push Button

Product Description

Product Description

Device Controller, Pump Pressure Controller - Water Supply Equipment

Product Description

Model No.	Main Spec: Rated Input Voltage: AC380V/50HZ, Three Phase Rated Output Power: 0.75kw-4kw (1hp-5.5hp) 5.5kw-7.5kw (7.5hp-10hp) 5.5kw-11kw (7.5hp-15hp) 15kw (20hp) Grade of Protection : IP54
C3-W2	Application: Control & Protect Dual Three Phase Pump, DOL
C3-W2	Main Features: 1. Auto / Manual 2. Over Load Protection 3. Pump Shaft Rust Protection 4. Rapid Cycle Protection 5. Motor Stalled Protection 6. Under Voltage Protection 7. Dry Run Protection With Sensor Free 8. Open Phase Protection 9. Push Button Calibration 10. Built-in Function Switch For Water Transfer, Booster and Sewage Lifting (Drainage) 11. Support Dual Pumps Alternating, Switching and Backup 12. Memory Function When Power Off & Recovery 13. LCD Screen Displays Pump Running Information 14. Available Terminals For Level Sensor, Float Switch, Pressure Switch Wiring 15. Pump Accumulative Running Time Displaying 16. Available RS485 Communication Port 17. Pump Last Five Fault Record Displaying 18. Level sensor transmitting distance≤1000m
